Technical Design Guide | Pharma GMP Cleanroom
A GMP modular cleanroom for pharmaceutical production must do more than achieve a target ISO 7 or ISO 8 particle class. It must support contamination control strategy, pressure differential, personnel and material flow, cleanable surfaces, monitoring access and documented validation from design through qualification.
GMP modular cleanroom ISO 7 cleanroom pharmaceutical cleanroom cleanable wall panel
| ISO 7/8Classify particles under defined operating states. | PressureProtect clean zones with a documented cascade. | CCSSupport contamination control strategy. | ValidationPrepare DQ, IQ and OQ evidence early. |
In pharmaceutical facilities, modular cleanroom design must balance speed with evidence. A factory-built or modularized envelope is valuable only when its surfaces, joints, airlocks, doors, HVAC interfaces and monitoring points can be documented and verified against GMP expectations.
GMP Design Logic
A pharmaceutical cleanroom should be designed from process risk: open product exposure, microbial risk, personnel intervention, material transfer, cleaning frequency, equipment maintenance and environmental monitoring. ISO 7 or ISO 8 targets are important, but they are only one part of the contamination-control picture.
EU GMP Annex 1 emphasizes a contamination control strategy for sterile product manufacturing. Even when a room is not Grade A/B, the modular cleanroom envelope should help control contamination routes through cleanable construction, pressure control and defined flows.
Wonclean modular cleanroom projects should therefore be reviewed with user requirement specifications, process flow diagrams, HVAC zoning, panel elevations, door interlocks and qualification documents before production starts.
ISO 7/8 and Pressure

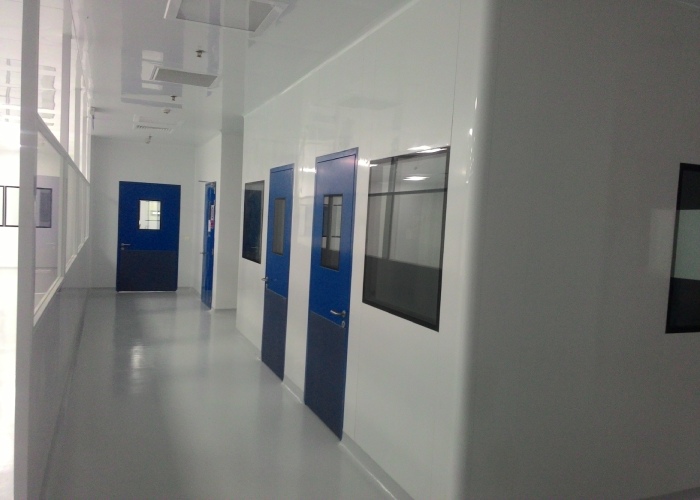

ISO 14644-1 classifies cleanrooms by airborne particle concentration. In GMP facilities, the same room also needs a defensible pressure differential strategy that reflects product protection, cross-contamination risk, personnel movement and material transfer.

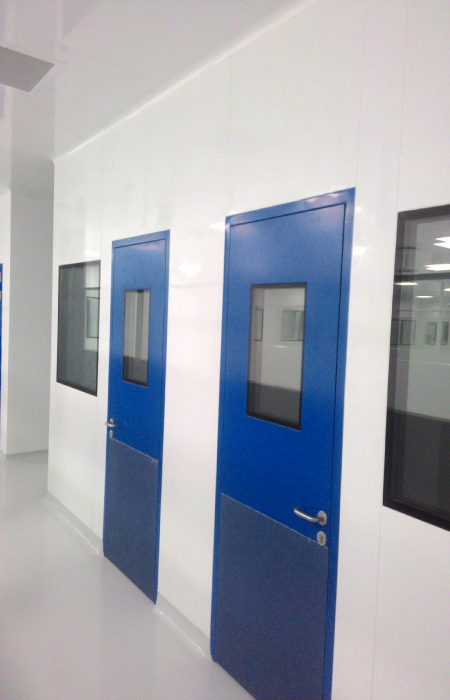

A modular envelope can make pressure control easier because wall panels, doors, windows and penetrations are repeatable. But the design must avoid uncontrolled leakage. Door gaps, pass-through seals, ceiling returns and utility penetrations can all weaken a pressure cascade.
| Design item | GMP risk | Evidence to prepare |
|---|---|---|
| Pressure cascade | Cross-contamination or loss of product protection. | Room pressure map, alarm logic and balancing report. |
| Airlock sequence | Personnel or material flow can bypass control points. | Door interlock logic and operating SOP. |
| Cleanable surfaces | Residue, microbial harborages or cleaning failure. | Material records, sealant data and cleaning compatibility review. |
| Monitoring access | Incomplete environmental or pressure records. | Sensor location plan, calibration list and maintenance access route. |
Cleanable Envelope

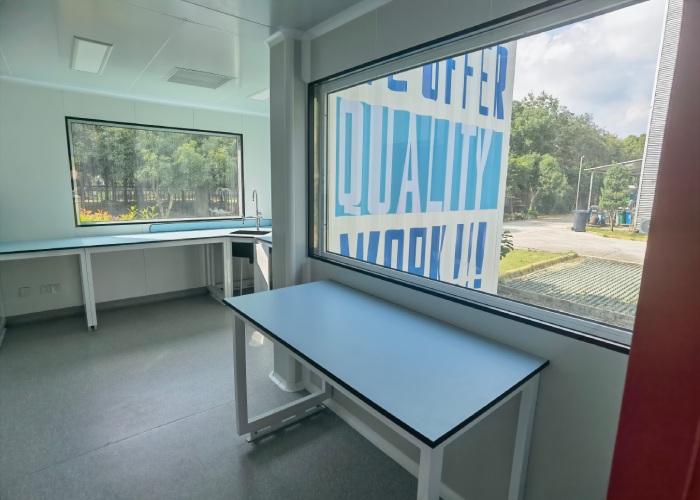

A modular pharmaceutical cleanroom should reduce ledges, exposed fasteners, rough trims and uncontrolled gaps. Wall panels, ceiling panels, view windows and door frames should be selected for wipe-down, visibility, impact risk and compatibility with cleaning agents.
Where rooms are ISO 7 or ISO 8 support areas, cleanability still matters. These areas may feed higher-grade processes, hold components, support gowning or contain equipment staging. If the support area sheds particles or holds residue, upstream contamination control becomes harder.
The FDA aseptic processing guidance notes that cleanroom design and control are part of CGMP expectations for sterile drug manufacturing. The exact acceptance criteria should come from the facility's process risk assessment, regulatory market and quality system.
Validation Readiness
A GMP modular cleanroom should leave the design stage with qualification evidence in mind. Typical documents include URS traceability, design review, material specifications, layout drawings, HVAC zoning, filter schedule, pressure setpoint map, room data sheets, calibration list and construction inspection plan.
During start-up, ISO 14644-3 test methods can support cleanroom verification such as airflow volume, pressure difference, recovery and installed filter leakage where specified. GMP qualification then adds site procedures, records, deviation handling and acceptance criteria.
A modular design should not hide critical services. Maintenance access for dampers, sensors, filters, interlocks and pressure tubing should be planned without damaging cleanable finishes.
Technical Fact Check
| Fact used | Source | Design implication |
|---|---|---|
| Cleanroom classification is based on airborne particle concentration. | ISO 14644-1 | ISO 7/8 targets require particle verification, not only airflow estimates. |
| Cleanroom test methods include airflow and pressure difference tests. | ISO 14644-3 | Modular rooms need measurable pressure and airflow access points. |
| Sterile manufacturing guidance emphasizes contamination control strategy. | EU GMP Annex 1 | Room layout, flows and cleaning should support CCS, not only construction speed. |
| Aseptic manufacturing guidance links cleanroom control to CGMP expectations. | FDA aseptic processing guidance | HVAC, personnel, cleaning and monitoring must be documented for regulated use. |
Referenced Standards
FAQ
No. ISO class is one performance requirement. GMP compliance also depends on contamination control strategy, procedures, monitoring, personnel flow, cleaning, maintenance and qualification records.
There is no universal value that fits every process. The pressure cascade should be defined by product protection, contamination risk, hazardous materials, personnel/material routes and local GMP expectations.
Yes, if design, materials, installation and test records are prepared properly. Modular construction can support validation when documentation and inspection points are planned early.
Review URS, room classification, pressure map, personnel and material flows, HVAC zoning, cleanable surfaces, monitoring points, maintenance access, cleaning agents and qualification acceptance criteria.
Wonclean Engineering Note
A GMP modular cleanroom should be engineered so the installation can be inspected, tested, cleaned and maintained without rewriting the design intent after delivery. This requires early coordination between cleanroom envelope, HVAC, utilities, validation and quality teams.
